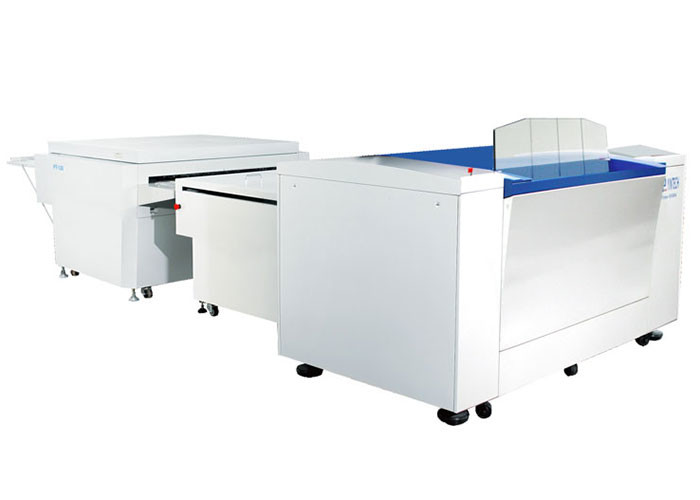

Item name: Very large format ctp 16up computer to plate equipment 64 diodes 15 plates per hour 2400DPI max format 1400mmx1700mm

UV CTP(Semi-Auto)
Technical specification
Model	UV (thermal) CTCP
	Yinber 9300A	Yinber 9500A	Yinber 9600A	Yinber 5300A	Yinber 5500A
No. of Lasers	32	48	64	32	48
Productivity (1130x800mm) (plates/h)	17	22	26	22	28
Max./Min. Format	Max.: 1160mmx940mm Min.: 350mmx400mm			Max.: 800mmx660mm Min.: 350mmx400mm
Laser Source	405nm
Resolution	2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System	Semi-Auto
Plates Requirement	0.15-0.4mm UV plates, no brand requirement
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220-230V,50-60Hz 5.5KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2020mmx 1000mmx 930mm Weight: 1500kg			Size:1900mmx 1200mmx 1000mm Weight: 1000kg
Workflow software	HQ&PR

Automatic CTP(Thermal VS UV)
Technical specification
Model	Thermal			UV
	Yinber 8300B	Yinber 8500B	Yinber 8600B	Yinber 9300B	Yinber 9500B	Yinber 9600B
No. of Lasers	32	48	64	32	48	64
Productivity (1130x800mm) (plates/hour)	17	24	29	17	24	29
Max./Min. Format	Max.: 1160mmx940mm Min.: 350mmx400mm
Laser Source	830nm			405nm
Resolution	2400 dpi (Resolution can be customized, up to 8000dpi maximum)
Loading System	Automatic,Semi-Auto ( Auto-loader available)
Plates Requirement	0.15-0.4mm Thermal plates, no brandre quirement			0.15-0.4mm UV plates, no brand requirement
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60Hz 8KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2200mmx1350mmx1350mm Weight: 1500kg
Workflow software	HQ&PR

Large Format CTP(Thermal VS UV)
Technical specification
Model	Thermal				UV
	Yinber 2200		Yinber 2300		Yinber 2200U		Yinber 2300U
No. of Lasers	48		64		48		64
Productivity (1130x800mm) (plates/hour)	12	13	14	15	12	13	14	15
Max./Min. Format	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394	1200x 1400 508x394	1400x 1700 508x394
Laser Source	830nm				405nm
Resolution	2400 dpi
Loading System	Single plate, manual loading
Plates Requirement	0.15-0.4mm Thermal Plates				0.15-0.4mm UV Plates
CTP Interface	1-bit Tiff interface and direct workflow driver,support CIP3/CIP4
Power	AC220V,50-60Hz 8KW
Environment	Temperature: 20-25ºC Humidity: 40%-80%
Size & Weight	Size: 2880mmx1310mmx1310mm Weight: 2800kg
Workflow software	HQ&PR

FUCAI CTP Plate(Thermal VS UV PS Plate)
Technical specification
Products Type	(FP-100) Positive Thermal PS Plates	(FP-200) UV PS Plates
Durable Rate	50,000~100,000 prints; >=100,000 after baking	>=100,000 prints
Thickness	0.27mm, 0.15mm	0.27mm, 0.15mm
Sensitive wavelength	830nm	405nm
Laser power	110~150mj/cm	50~70mj/cm
Resolution	1%~99%@200lpi	1%~99%@200lpi
Baking condition	230˚C-250˚C, 5~8 minutes (by using professional plate baking glue)	230˚C-250˚C, 5~8 minutes (by using professional plate baking glue)
Safe lighting	2 hours under fluorescent lamp, 12 hours under yellow light	2 hours under fluorescent lamp, 12 hours under yellow light
Storage condition	Store in dry and cool place, store in 5˚C~30˚C, Humility <55%	Store in dry and cool place, store in 5˚C~30˚C, Humility <55%
Shelf life	12 months	12 months
Developing time	20sec~30sec	20sec~30sec
Productivity	1800m2~2500m2	1800m2~2500m2

we are one of leading ctp equipment, ctp machine supplier from China, we have professional computer to plate ctp equipment factory, welcome to buy products from us.

Shenzhen Yintech Co., Ltd. is a national high-tech enterprise integrating independent R&D, manufacturing and marketing. It has a deep technical accumulation in laser modulation technology, image control technology and platform motion control technology. The company has developed CTCP, CTP, CTS, LDI and photolithography equipment with independent intellectual property rights and reached the international advanced level by using more than ten years of technology accumulation and professional R&D team. It has sold thousands of sets at home and abroad. After more than ten years of precipitation, the company's export business has covered more than 100 countries and regions. In the future, the company will strive to become a leading enterprise in the fields of lithography, new generation of high-end new printing, PCB equipment and semiconductor manufacturing.

Our company has strong strength and established a new company Hunan Yintech Co., Ltd with the government, which covers an area of 30 acres with a total investment of 600 million RMB. It is mainly used to invest in the production of lithography machines, printed circuit boards, laser direct imaging equipment, printing plate-making equipment and related accessories, as well as laser plate-making equipment assembly and production.
