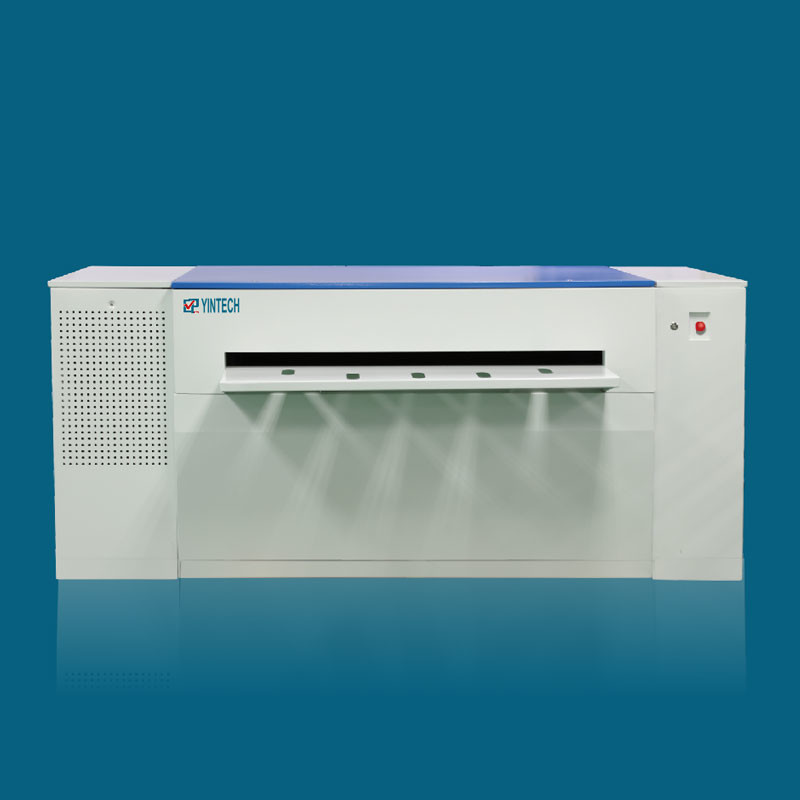

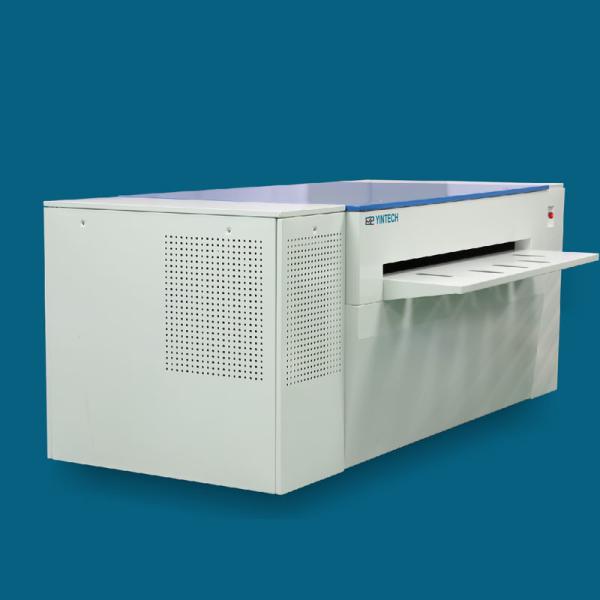

Thermal model: 8300/8500/8600/8900/8100 corresponding to the thermal laser diodes 32 /48/64/96/128 channels

UV model: 9300/9500/9600/9900/9100 corresponding to UV laser diodes 32 /48/64/96/128 channels

Number of laser diodes: 32/48/64/96/128 channels

Throughput : 17/22/27/33/43 plates/hour

Max plate size: 1160x940mm min plate size: 350x400mm

Laser source: 830nm/405nm

Resolution: 2400dpi

Plate loading/unloading system: manual/automatic/semi-automatic optional

Plate media gauge: 0.15-0.40mm various thermal plates/0.15-0.40mm various UV plates

CTP interface: 1-bit TIFF interface and workflow direct drive, support for CIP3/CIP4

Power requirements: AC220V, 50-60Hz 5.5KVA

Working environment requirements:

Temperature: 20-25C, humidity: 40%-80%

Size: 2020x1000x930mm Net weight: 1500KG

Shenzhen Yintech Co., Ltd. is a national high-tech enterprise integrating independent R&D, manufacturing and marketing. It has a deep technical accumulation in laser modulation technology, image control technology and platform motion control technology. The company has developed CTCP, CTP, CTS, LDI and photolithography equipment with independent intellectual property rights and reached the international advanced level by using more than ten years of technology accumulation and professional R&D team. It has sold thousands of sets at home and abroad. After more than ten years of precipitation, the company's export business has covered more than 100 countries and regions. In the future, the company will strive to become a leading enterprise in the fields of lithography, new generation of high-end new printing, PCB equipment and semiconductor manufacturing.

Our company has strong strength and established a new company Hunan Yintech Co., Ltd with the government, which covers an area of 30 acres with a total investment of 600 million RMB. It is mainly used to invest in the production of lithography machines, printed circuit boards, laser direct imaging equipment, printing plate-making equipment and related accessories, as well as laser plate-making equipment assembly and production.
